Hobby in general - Modular tiles for a gaming table - WIP - Part one

Hi,

in my last post I showed some pictures of a selfmade terrain plate for Dead Man´s Hand.

But one plate is not enough and I always have the problem that I have to use some boards that have the wright color but not the wright size. It is always tricky to form a suitable gaming table.

So I decided to produce some more plates in 60x60cm of size that are modular and would be able to be arranged in different settings.

It is a try for I never did this before. In the last days I often made up my mind how to manage this project because I´m not a carpenter but a simple account manager.

I love to work with wood and I also like to create or build something in compensation to my daily business.

So here are the first results of this Work in Progress.

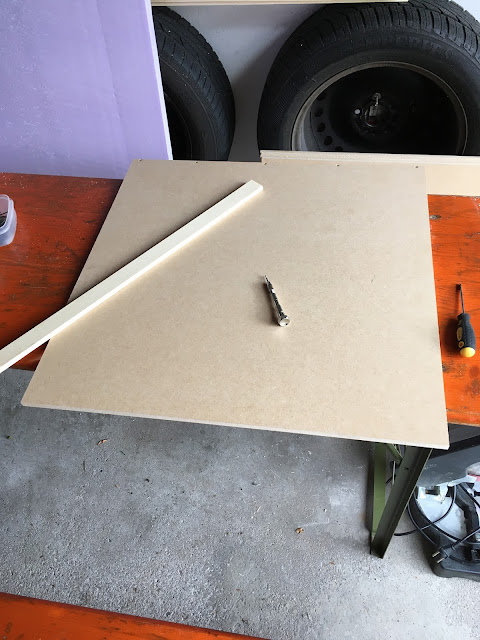

First of all I organized some mdf-plates of 60x60cm size and 1cm height. Also I bought some wood affords.
These wood affords are 1cm in depth and 3cm in height. I cut these affords into 59cm length.

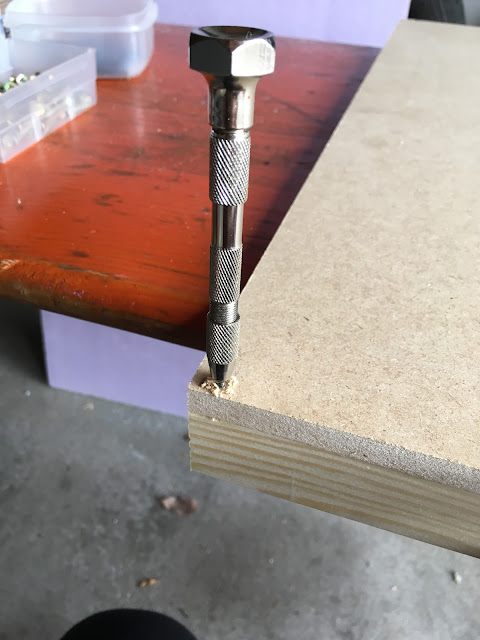

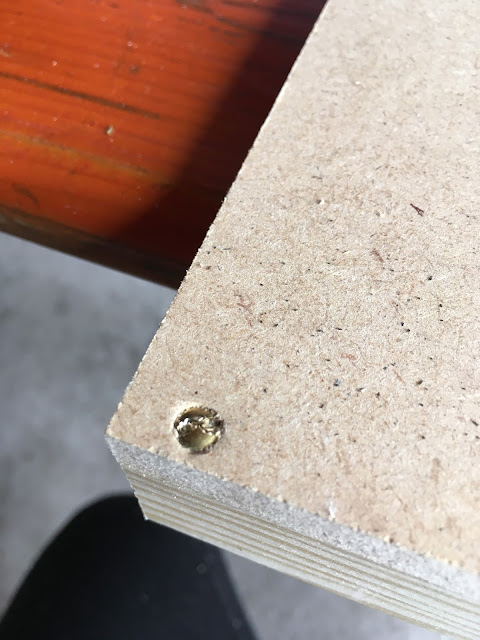

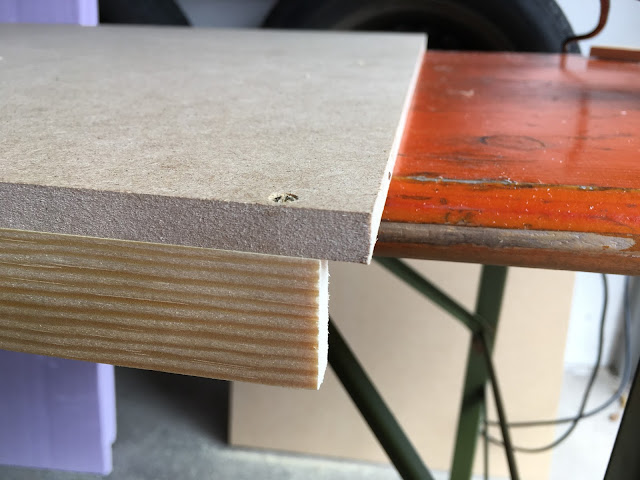

Then I drilled some holes into the mdf-plates and fixed the cutted affords of 59cm with small screws.

Tadaaah !!! :)

As the affords are 59cm and the mdf-plate has 60cm length I just had to fix 4 of these affords.

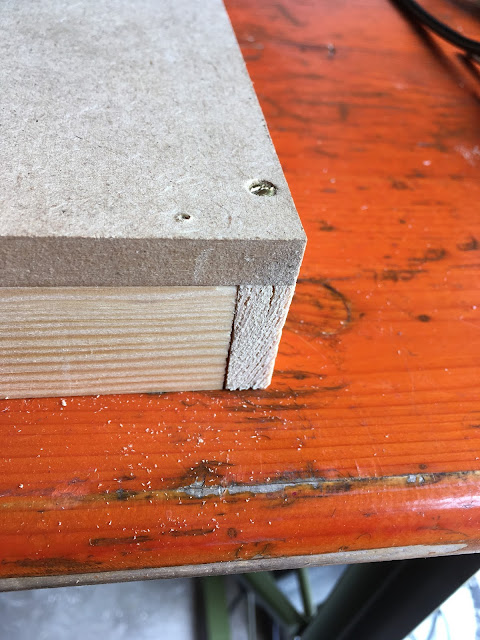

It overlaps only once on each side.

The finished construction. But I wanted more....

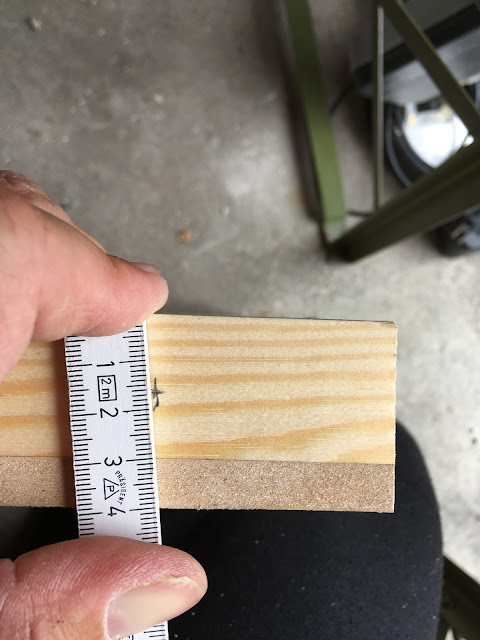

I just measured 1,5cm from the top of the construction...

...and just 5cm from each edge.

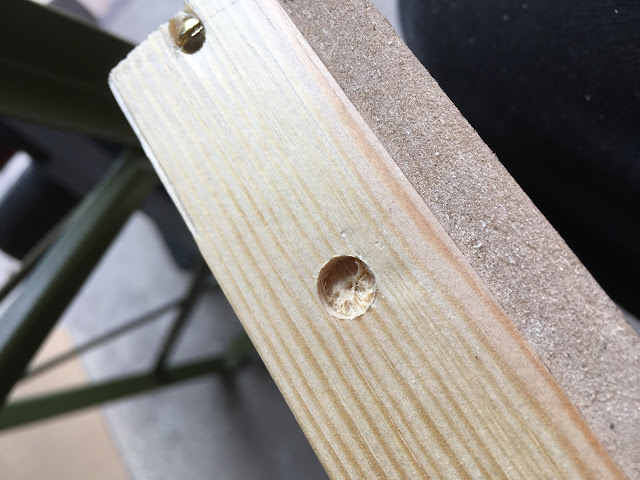

After that I drilled a hole into the afford on the marked spots...

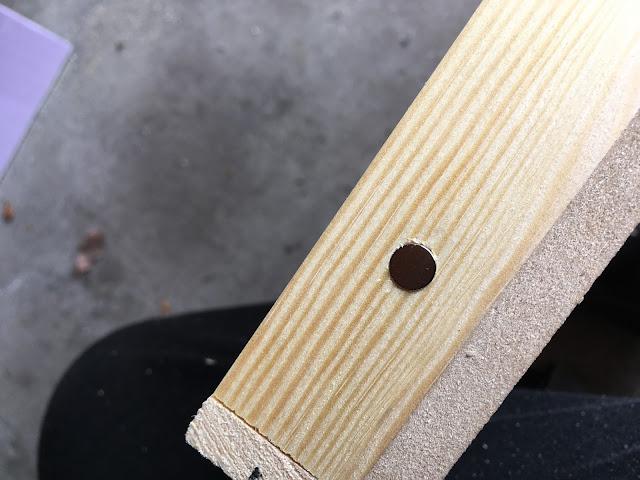

...and just fixed a magnet into the drilled holes.

I just had to be careful to fix the magnets in the wright way to be sure that the poles would not repel themselves.

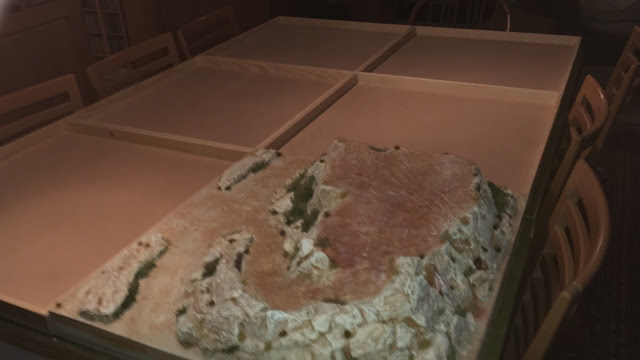

Five new terrain plates ready for further construction.


It fits very well - :)

Next step is to glue tiles of 58x58cm styrodur in 4cm heigth.

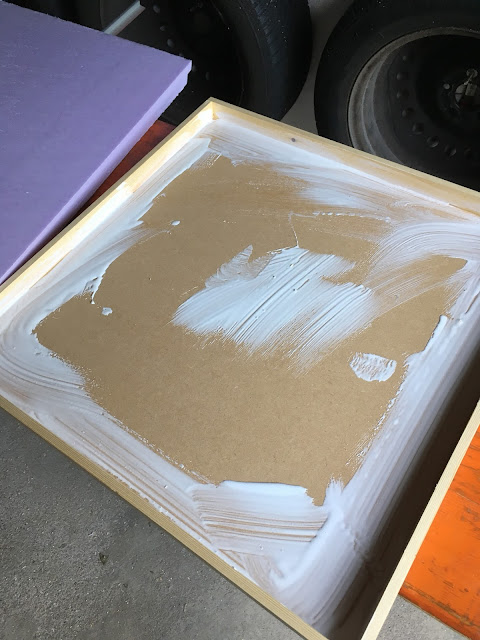

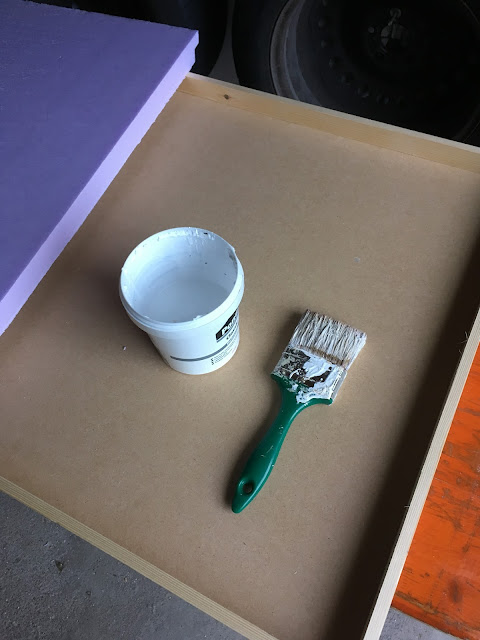

PVA-glue - the best to fix the styrodur.

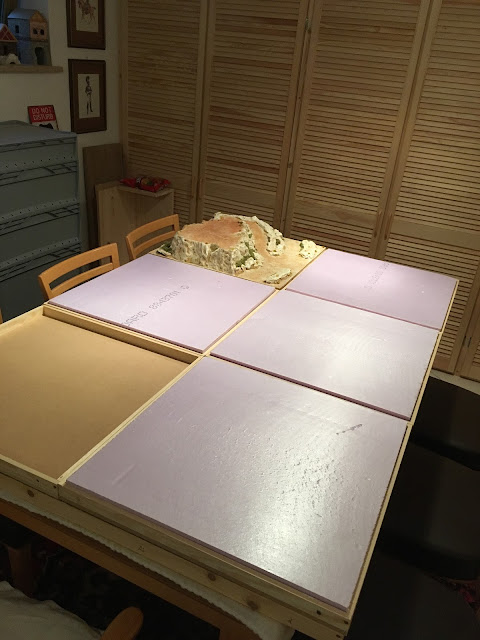

The filled frame....

There is one part of styrodur missing. So the DIY-shop will see me again tomorrow.

To be continued....


Cheers

Mike
